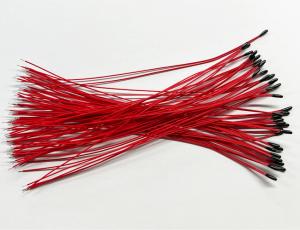

Precision Automotive NTC Thermistor Light Weight Miniature Designed
Precision Automotive NTC Thermistor Suppliers Light Weight Miniature Designed
Features
1. Small body diameter of max. 2.0 mm
2. FEP, PFA Insulated lead Wires.
2. Precise measurement in extreme environments.
3. Rapid time response.
4. Thermally Conductive Epoxy Coating.
5. Engineered to withstand extreme temperatures -40 to + 150°C.
6. Greater engineering efficiency due to linear output.
Applications
1. Temperature Minsing, control and compensation
2. Tight Tolerance Instrumentation
3. Assembly into probes for a wide variety of applications
4. General Instrumentation applications
Specification Explain:
SJ MF 5A-5 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-5 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| SJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 | ln still air ≥ 2.1mW/℃ | ln still air ≤ 15s | -40～+150℃ |
| SJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 |
| SJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 |
| SJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 |
| SJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 |
| SJMF5A-□-395/348-152□ | 1.5 | 3950/3480 |
| SJMF5A-□-397/418-104□ | 100 | 3970/4180 |
| SJMF5A-□-453-105□ | 1000 | 4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.
Advantages and characteristics of Auto Temperature Sensor
- We have the heart of NTC temperature sensor--full sets of production line and core technology of pro-prietary intellectual property rights for high performance temperature measurement NTC thermistor.
- We have all kinds of NTC core element of NTC Temperature sensor--high performance temperature measurement thermistors are own production,complete series,structural diversity. Our products can meet the requirements of prevision measurement in different temperature area from low temperature,medium and low temperature to medium-high temperature.These products have passed many safety certifications of domestic and foreign.
- Resistance and temperature characteristics can meet customer's requirements entirely,and support best convenience to customers.
- Mature manufacturing technique of NTC temperature sensor,Large-scale mass production,product have the best ability of insulation sealing,Mechanical collision,resistance to bending,well-set.
- Small thermal time,fast response
- Multi category,complete series,many kinds of housing he configuration,easy to assemble
- We have high lavel inspection equipments which carrry out strict and normative inspection process.
- Our products with high precision,high reliability,high stability,high interchangeable,high commonality are advanced in industry.
